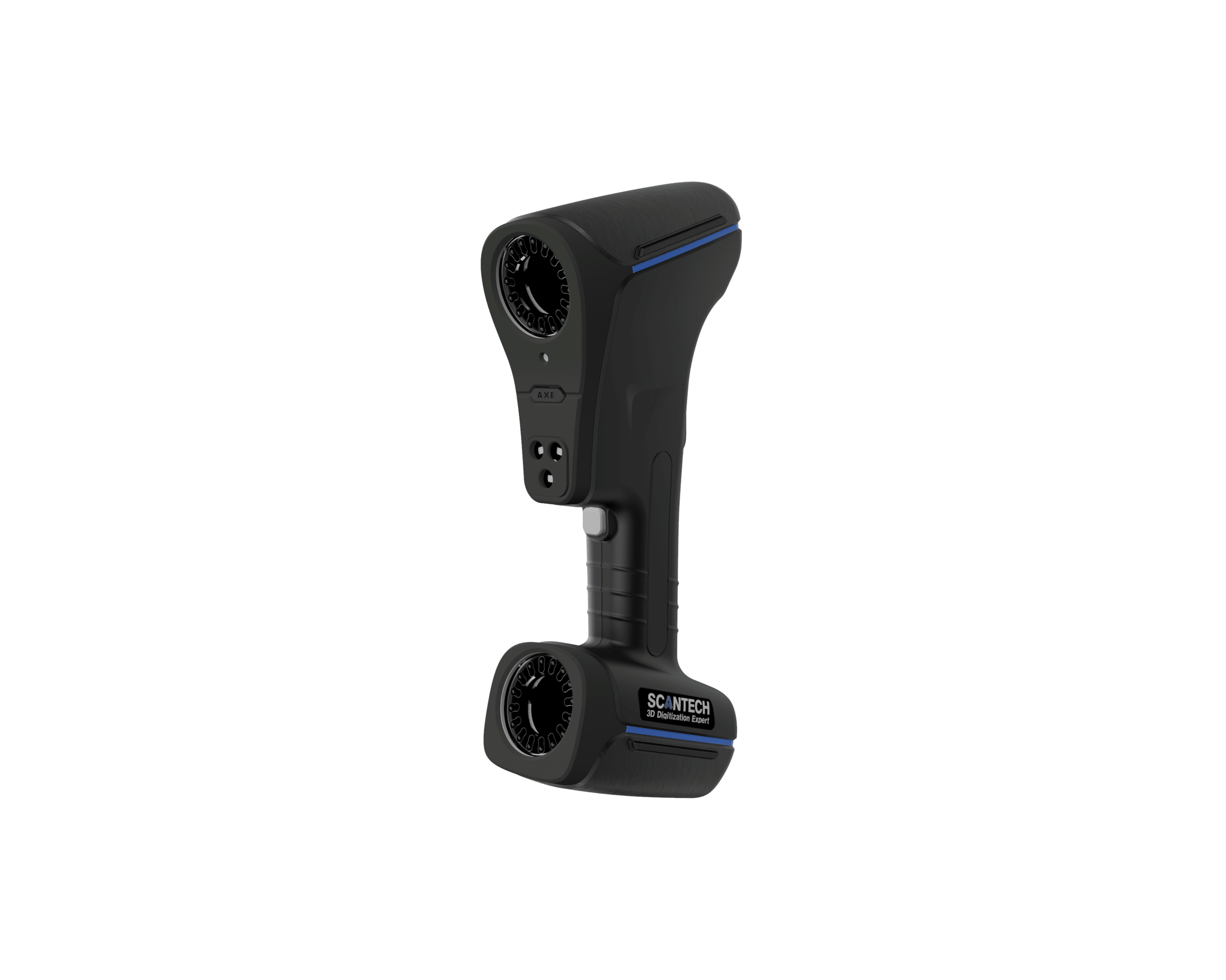

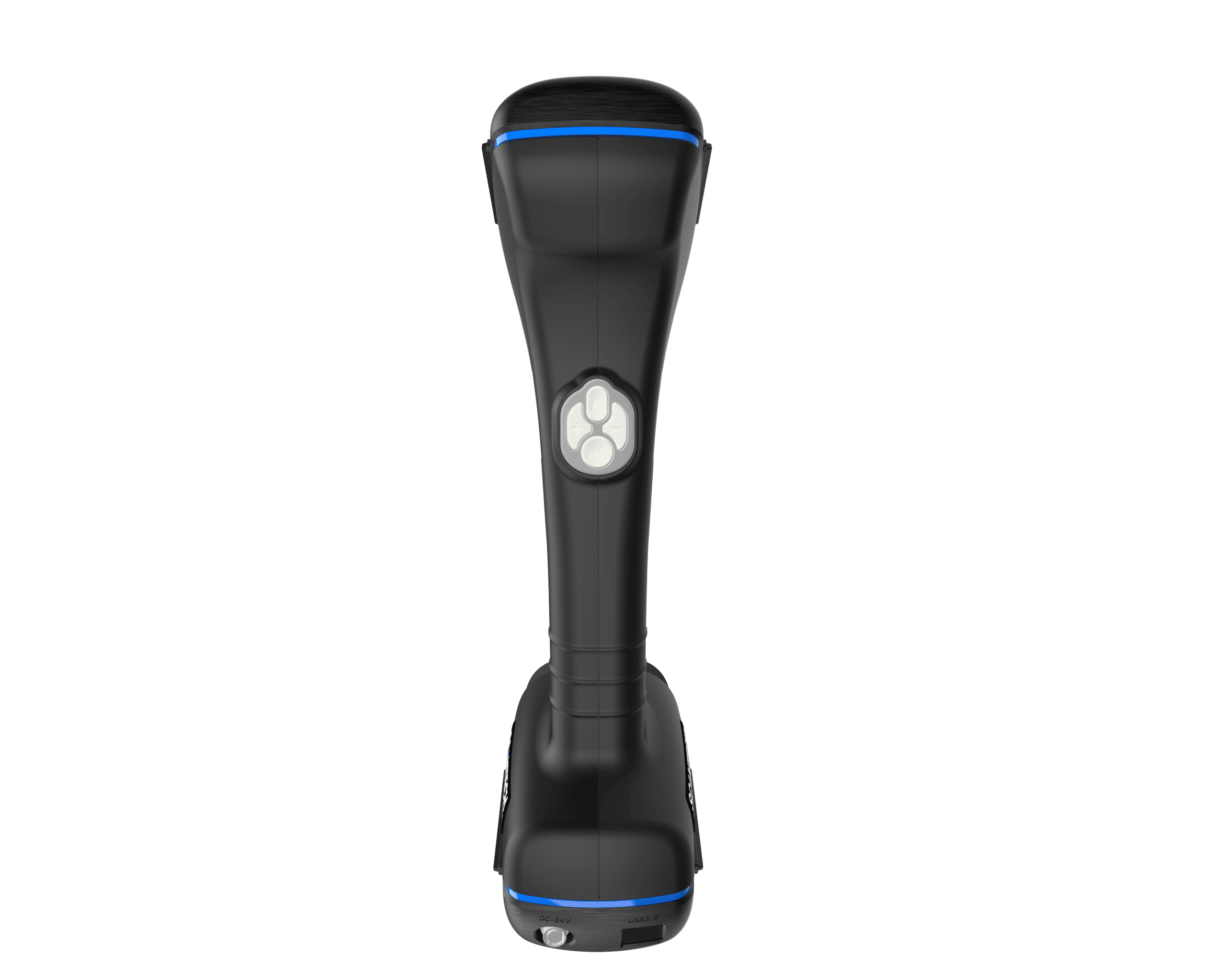

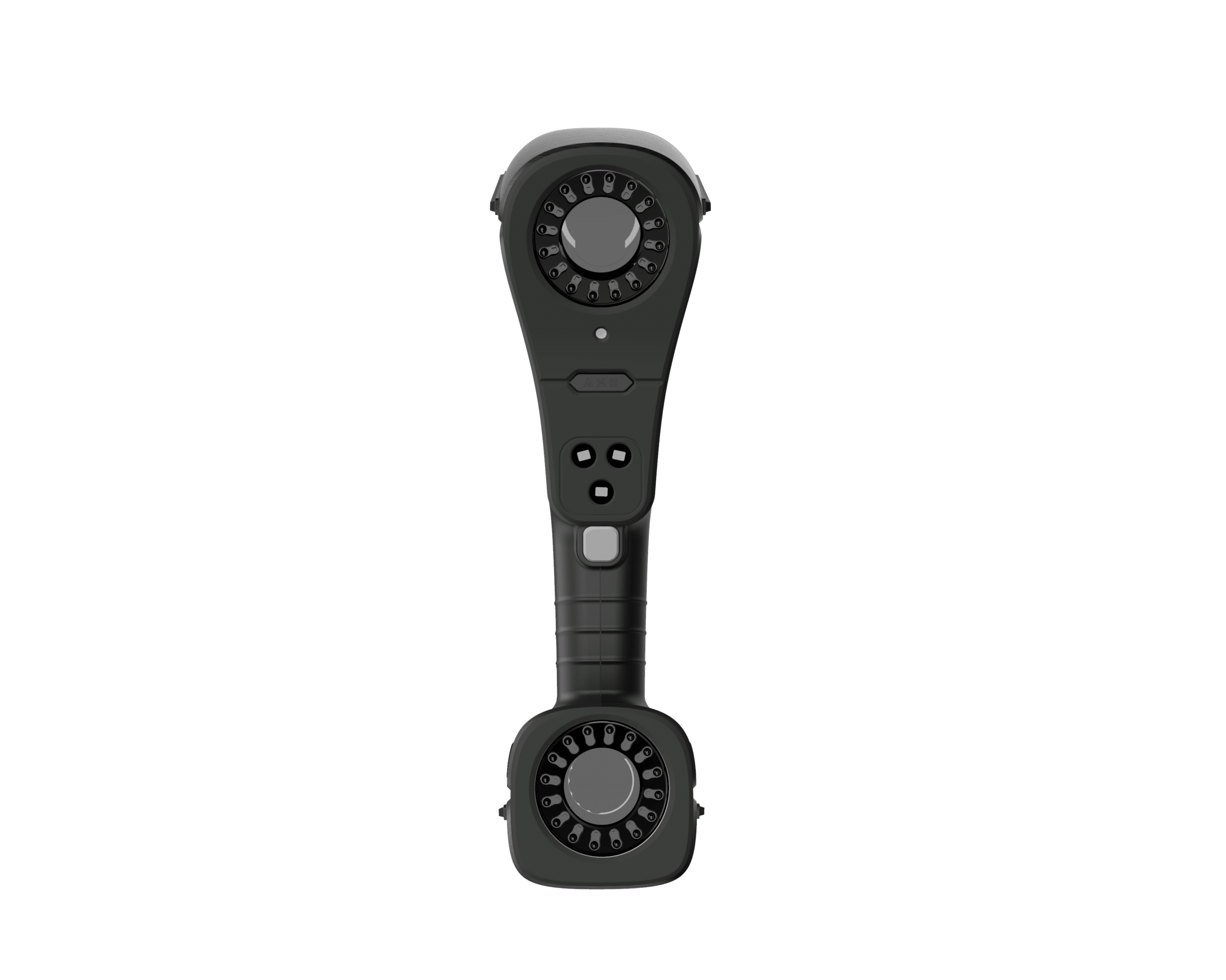

AXE-B

AXE-B 3D model scanner utilizes optical measurement technology with a maximum scanning speed of 2,000,000 measurements/s, quickly capturing 3D data of the object and getting precise deviations on the geometric surface.

Categories: 3D Scanners, Handheld 3D Scanners

Description
TECHNICAL SPECIFICATIONS

Measuring An Ultra-wide 3D World.

Ultra-wide scanning area: 860 mm x 600 mm
Up to 2,000,000 measurements/s
Accuracy Up to 0.020 mm

With a global initiative built-in photogrammetry system, AXE-B17 outputs ultra-large scanning area and metrology-grade measurement accuracy. Choose between different operating modes of efficient unrivaled speed and accurate deep-hole scanning and get rid of limitations like size, shape, material, and complexity of the object. Generate a high-precision 3D inspection on medium to large-sized projects with no need for additional devices.

	ΑΧΕ-Β17	ΑΧΕ-Β11
Scan mode	Ultra-fast scanning: 17 blue laser crosses	Ultra-fast scanning: 11 blue laser crosses
Scan mode	Deep hole scanning: 1 extra blue laser line	Deep hole scanning: 1 extra blue laser line
Accuracy	Up to 0.020 mm
Measurement rate up to	2,000,000 measurements/s	1,300,000 measurements/s
Scanning area up to	860 mm × 600 mm	550 mm × 600 mm
Scanning area up to (photogrammetry)	3760 mm × 3150 mm	2500 mm × 3000 mm
Scanning area up to (photogrammetry)	3760 mm × 3150 mm	2500 mm
Depth of field	2500 mm
Laser class	CLASSⅡ (eye-safe)
Resolution up to	0.025 mm
Volume Accuracy - Work alone
Volume Accuracy - Work alone	0.020 mm + 0.030 mm/m	0.020 mm + 0.035 mm/m
Volume Accuracy - Work with MSCAN-L15	0.020 mm + 0.020 mm/m
Volume Accuracy - Work with 1m reference bar	0.020 mm + 0.012 mm/m
Volume Accuracy - Work with 1m reference bar	0.020 mm + 0.012 mm/m
Stand-off distance	300 mm
Depth of field	500 mm
Output formats	.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
Operating temperature range	-10°C–40°C
Interface mode	USB 3.0
